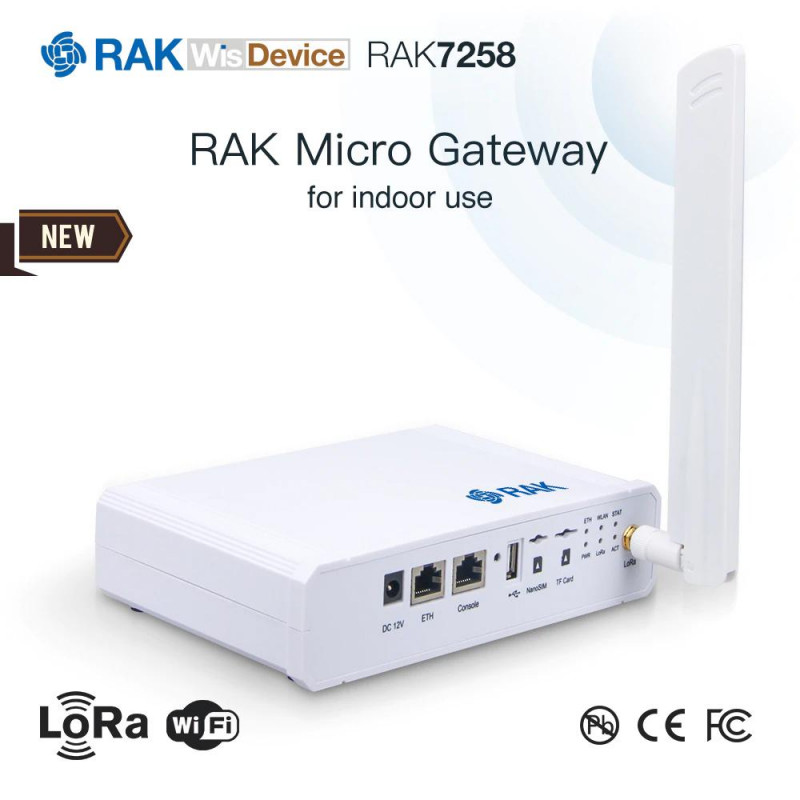

RAK7258 Micro Gateway - EU868 - non-LTE
Full 8-channel LoRa Gateway
The RAK7258 Micro Gateway is a full 8-channel LoRa Gateway with built-in Ethernet connectivity for a straightforward setup. Additionally, there is an onboard Wi-Fi setup that allows it to be easily configured via the default Wi-Fi AP mode.
As with the other RAKwireless Industrial Gateways, it also supports MQTT Bridge mode, with the option for TLS authentication.
Power-over-Ethernet (PoE) is supported to serve cases where wall or ceiling mounting is required without the need to install additional power lines.
The open source software for the management and configuration of this gateway device is based on OpenWRT. It has a built-in LoRa packet forwarder and a graphical user interface, allowing for a quick set-up without giving up the freedom of a fully customized solution.
The Gateway has Line-of-Sight (LoS) ranges of up to 15 km, while for highly urbanized environments it can cover more than 2 km. IT is a perfect solution for any LoRaWAN use case scenario.
The RAK Micro Gateway package includes a LoRa antenna, mounting screws, and anchors. It is a full 8-channel LoRa Gateway with built-in Ethernet connectivity for a straightforward.
Support for 8 RX and 1 TX LoRa Channels
Full LoRaWAN™ Stack support (version 1.0.2)
100M Ethernet (PoE) + WiFi (Optional LTE 4G, Nb-IoT, LTE Cat M)
Can be integrated with both private and public (TTN) Network servers
OpenWRT Software UI for management and configuration
TF card slot
Product Dimensions: 260mm x 200mm x 50mm
Product Weight: 0.4kg
RAK Micro Gateway
