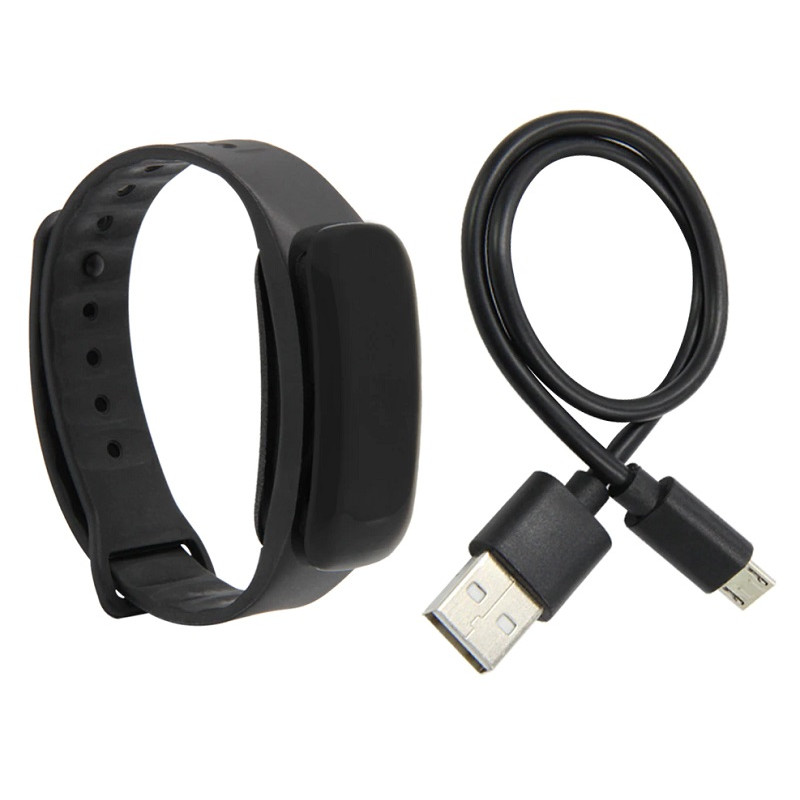

LILYGO®TTGO T-Impulse Wristband LORA 868MHZ

€45.00
Tax excluded

Arduino Programmable wristband with LoRa connectivity and GPS receiver.

Quantity
Out-of-Stock

  • Secure online POS payment Secure online POS payment
  • Variety in transport companies Variety in transport companies
  • Delivery in 24-48 hours in the peninsula and the Balearic Islands Delivery in 24-48 hours in the peninsula and the Balearic Islands

LILYGO®TTGO T-Impulse Wristband LORA 868MHZ and GPS OLED STM32 Programmable

Arduino Programmable wristband with LoRa connectivity and GPS receiver.

https://github.com/Xinyuan-LilyGO/LilyGo-T-Impulse


Specifications

MCU: S76G = STM32L073Z + LoRa+ GNSS Module
Host Interfaces: UART
Flash: 192kb / SRAM: 20 Kb
LoRa frecuency band: EU868
GNSS frecuency band: GPS / GLONASS / BEIDOU
Onboard functions: Battery power detection, Silicone strap

SX1276 Low Power LoRa Transceiver
- Preamble detection, High sensitivity -137 dBm
- Programmable bit rate up to 37500bps

CXD5603GF ultra-low power GNSS module
- Ultra-low power, supports SBAS/QZSS protocol

Touch button: TTP223
9 axis sensor: ICM20948
Display type: OLED SSD1306
High vapacity battery: 250mA

LILYBRAC-868
