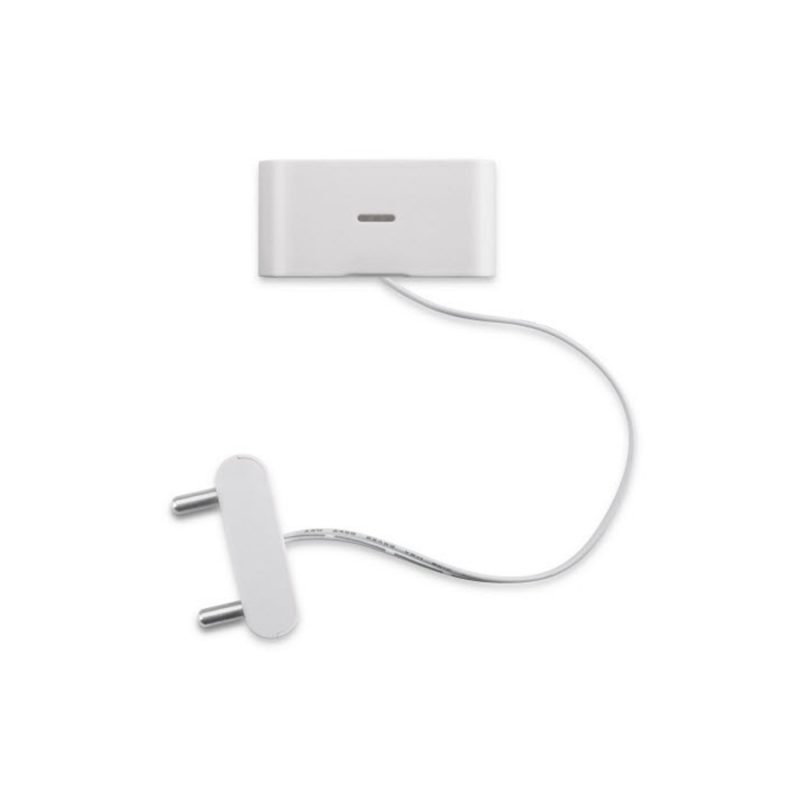

Dragino LWL01 LoRaWAN Water Leak Sensor EU868

16,00 €
Impuestos excluidos

The Dragino LWL01 is a LoRaWAN Water Leak Sensor. It detects the water leak status and send it to LoRaWAN network. The LWL01 is small sensor, the dimension is as small as 64 x 30 x 14 mm.

Cantidad



Pago 100% seguro a través de nuestra plataforma de pago.



Envío 24-48 horas - Garantía de satisfacción.

The Dragino LWL01 is a LoRaWAN Water Leak Sensor. It detects the water leak status and send it to LoRaWAN network. The LWL01 is small sensor, the dimension is as small as 64 x 30 x 14 mm.

LWL01 is powered by a CR2032 coin battery, in a good LoRaWAN Network Coverage case, it can transmit as many as 12,000 uplink packets (base on SF7, 14dB). in poor LoRaWAN network coverage, it can transmit ~ 1,300 uplink packets (base on SF10, 18.5dB). The design goal for one battery is up to 2 years. User can easily change the CR2032 battery for reuse.

The LWL01 will send periodically data every day as well as for water leak event. It also count the water leak event times and also calculate last water leak duration.

Each LWL01 is pre-load with a set of unique keys for LoRaWAN registration, register these keys to local LoRaWAN server and it will auto connect after power on.

Features:

    LoRaWAN v1.0.3 Class A
    SX1262 LoRa Core
    Water Leak detect
    CR2032 battery powered
    Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
    AT Commands to change parameters
    Uplink on periodically and water leak event
    Downlink to change configure


Applications:

    Wireless Alarm and Security Systems
    Home and Building Automation
    Industrial Monitoring and Control

LWL01-EU868
