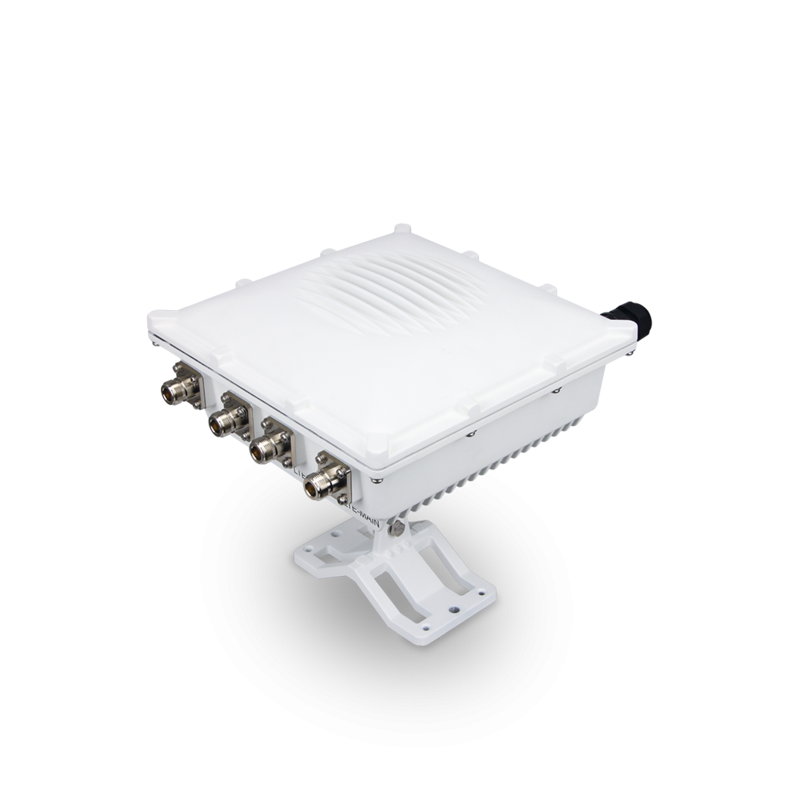

RAK7249 Macro Outdoor Gateway

RAK7249 Macro Outdoor Gateway is an ideal product for IoT commercial deployment. Its modularity and customization options allow for flexibility when deploying a solution. With its industrial grade components, it achieves a high standard of reliability.

The LoRa Gateway provides for a solid out of the box experience for quick deployment. Additionally, since its software and UI sits on top of OpenWRT it is perfect for the development of custom applications (via the open SDK).

Thus the RAK7249 is suited for any use case scenario, be it rapid deployment or customization with regards to UI and functionality.

Complete documentation of this product can be found on our website documentation page.

Key Features

Hardware

    IP67/NEMA-6 industrial grade enclosure with cable glands
    PoE + Surge Protection
    Dual LoRa Concentrators for up to 16 channels
    Backhaul: Wi-Fi, LTE and Ethernet
    GPS
    Up to 5 hours of autonomous work on battery (Battery + Solar Kit optional)

Software

    Built-in LoRa Server
    OpenVPN
    Software and UI sit on top of OpenWRT
    LoRaWAN™ 1.0.2
    LoRa Frame filtering (node whitelisting)
    MQTT v3.1 Bridging with TLS encryption
    Buffering of LoRa frames in case of NS outage (no data loss)

Packaging

    Product Dimensions: 220mm x 220mm x 104mm
    Weight: Approximately 3.15kg including the mounting kit
