WisGate Developer D0+ is a LoRaWAN® developer gateway with GPS function. It is a device composed of a the RAK2246 Pi HAT LPWAN Concentrator module and Raspberry Pi Zero W.
Todas nuestras páginas están protegidas con conexión HTTPS / TLS 1.3
Mismo día de lunes a viernes para pedidos realizados antes de las 10:00 am
WisGate Developer D0+ is a LoRaWAN® developer gateway with GPS function. It is a device composed of a the RAK2246 Pi HAT LPWAN Concentrator module and Raspberry Pi Zero W.
This concentrator module is a Class A and C compliant based on Semtech® SX1308 chip, which allows for simultaneous reception over 8 LoRa channels.
WisGate Developer D0+ is an ideal choice for prototype design, concept verification and demonstrations, development evaluation and other scenarios. It is developer-friendly due to its minimalistic design that reduces cost and allows for easily accessing the internals. It is easy to set-up, which makes it a good choice for both experienced and novice LoRa specialists.
Product Features
Using SX1308 baseband processor, full 8 uplink channels and 1 downlink channel LoRaWAN Gateway;
Built-in Ublox MAX-7Q GPS module;
The Pre-installed radiator guarantees stable thermal performance
Tx max 20dbm, Rx min -139dbm @ SF12 at 125kHz;
Power supply 5V / 2.5A (power adapter sold separately).
Product Inclusion

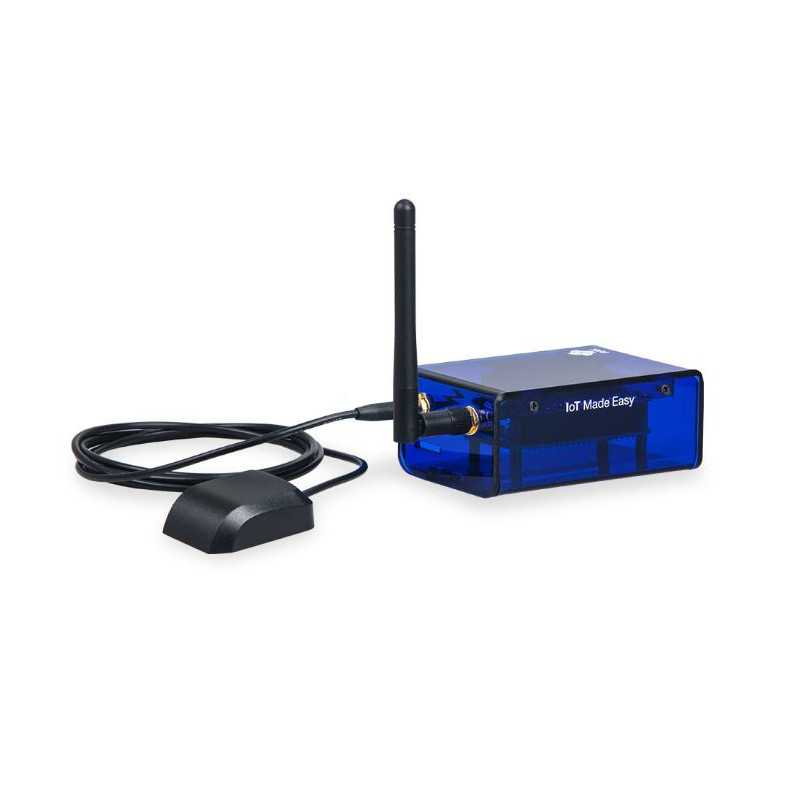

1x WisGate Developer D0+ (RAK2246 and Raspberry Pi Zero W inside)
1x LoRa Antenna
1x GPS Antenna
1x 16GB TF Card with pre-installed firmware
1x USB Cable (You can use your own power adapter, in case you don't have one you can add this power adapter to your cart)
