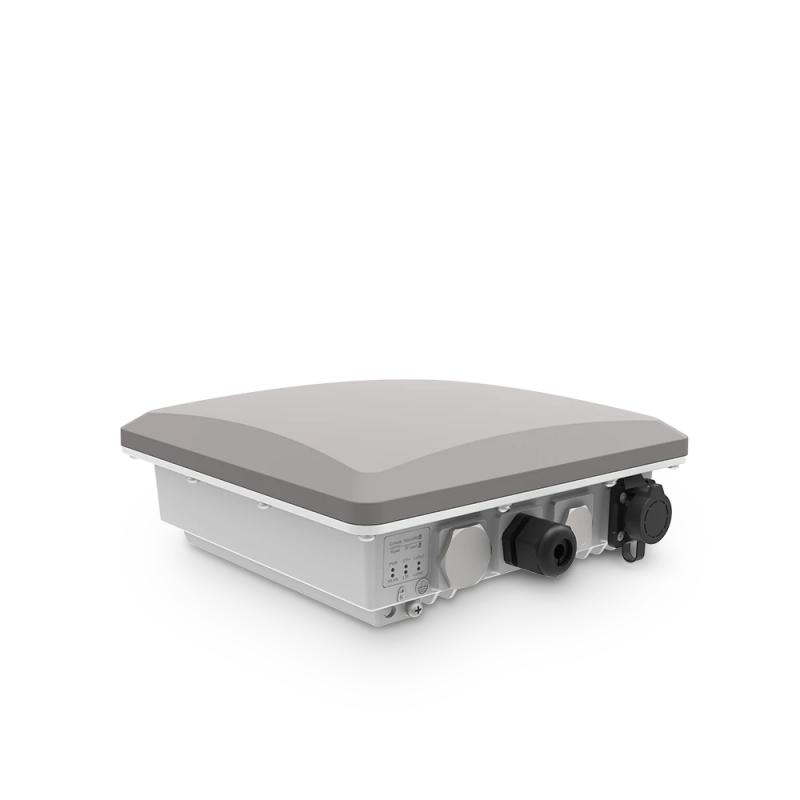

WisGate Edge Pro RAK7289 Gateway - EU868 - non-LTE

384,00 €
Impuestos excluidos

RAK7289 WisGate Edge Pro is an ideal product for IoT commercial deployment. With its industrial-grade components, it achieves a high standard of reliability.

Cantidad
Últimas unidades en stock



Pago 100% seguro a través de nuestra plataforma de pago.



Envío 24-48 horas - Garantía de satisfacción.

RAK7289 WisGate Edge Pro is an ideal product for IoT commercial deployment. With its industrial-grade components, it achieves a high standard of reliability.

Supports up to 8 LoRa channels, multi backhaul with Ethernet and Wi-Fi. Optionally there is a dedicated port for different power options, solar panels, and batteries. With its new enclosure design, it allows Wi-Fi, and GPS antennas to be inside the enclosure.

The gateway provides for a solid out-of-the-box experience for quick deployment. Additionally, since its software and UI sits on top of OpenWRT it is perfect for the development of custom applications (via the open SDK).

Thus, the RAK7289 is suited for any use case scenario, be it rapid deployment or customization with regards to UI and functionality.

Product Features

    Hardware
        IP67/NEMA-6 industrial-grade enclosure with cable glands
        PoE (802.3af) + Surge Protection
        LoRa Concentrator for up to 8 channels
        Backhaul: Wi-Fi and Ethernet
        GPS
        Supports DC 12V or Solar power supply with Electricity monitoring (Solar Kit optional)
        Internal antenna for Wi-Fi, GPS, External antenna for LoRa (not included)
        Dying-Gasp(optional)

    Software
        Built-in Network Server
        OpenVPN
        Software and UI sit on top of OpenWRT
        LoRaWAN 1.0.3
        LoRa Frame filtering (node whitelisting)
        MQTT v3.1 Bridging with TLS encryption
        Buffering of LoRa frames in Packet Forwarder mode in case of NS outage (no data loss)
        Full duplex (optional)
        Listen Before Talk (optional)
        Fine timestamping (optional)

Package Inclusion

    8 Channel with and without LTE
        1pc Gateway
        1pc Ethernet Gable Gland
        1pc POE Injector
        1pc Mounting Brackets
        1set Screws

Documentation

    RAK7289 Documentation

RAK7289-868
