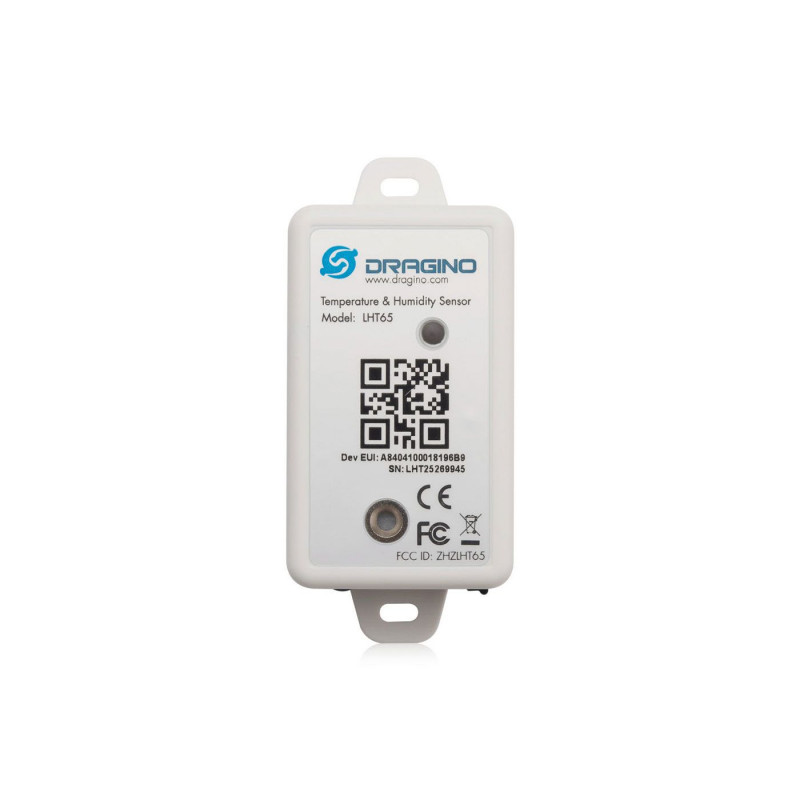

Dragino LHT65 LoRaWAN Temperature & Humidity sensor EU868

The Dragino LHT65 Temperature & Humidity sensor is a Long Range LoRaWAN Sensor. It includes a built-in SHT20 Temperature & Humidity sensor and has an external sensor connector to connect to external sensors such as Temperature Sensor, Soil Moisture Sensor, Tilting Sensor etc .

The LHT65 allows users to send data and reach extremely long ranges. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption. It targets professional wireless sensor network applications such as irrigation systems, smart metering, smart cities, building automation, and so on.

LHT65 has a built-in 2400mAh non-chargeable battery which can be used for more than 10 years*.

LHT65 is full compatible with LoRaWAN v1.0.2 protocol, it can work with standard LoRaWAN gateway.

LHT65 has 3200 data records with datetime which can be retrieved with datetime for further analyze.

Features:

    LoRaWAN Class A protocol
    Frequency Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915
    AT Commands to change parameters
    Remote configure parameters via LoRaWAN Downlink
    Firmware upgradable via program port
    Built-in 2400mAh battery for more than 10 year use.
    Built-in Temperature & Humidity sensor
    Optional External Sensors
    Tri-color LED to indicate status
    3200 set sensor record with time stamp

Applications:

    Wireless Alarm and Security Systems
    Home and Building Automation
    Automated Meter Reading
    Industrial Monitoring and Control
    Long range Irrigation Systems,etc.

Package Includes:

    1 x LHT65
    1 x E1 or E2 or E3 or E5 Sensor
    1 x program cable.


Dimensions and Weight:

Device:

    Size:135 x 70 x 30 mm/pcs
    Weight: 105g

Package:

    Size:145 x 80 x 50 mm/pcs
    Weight: 170g
