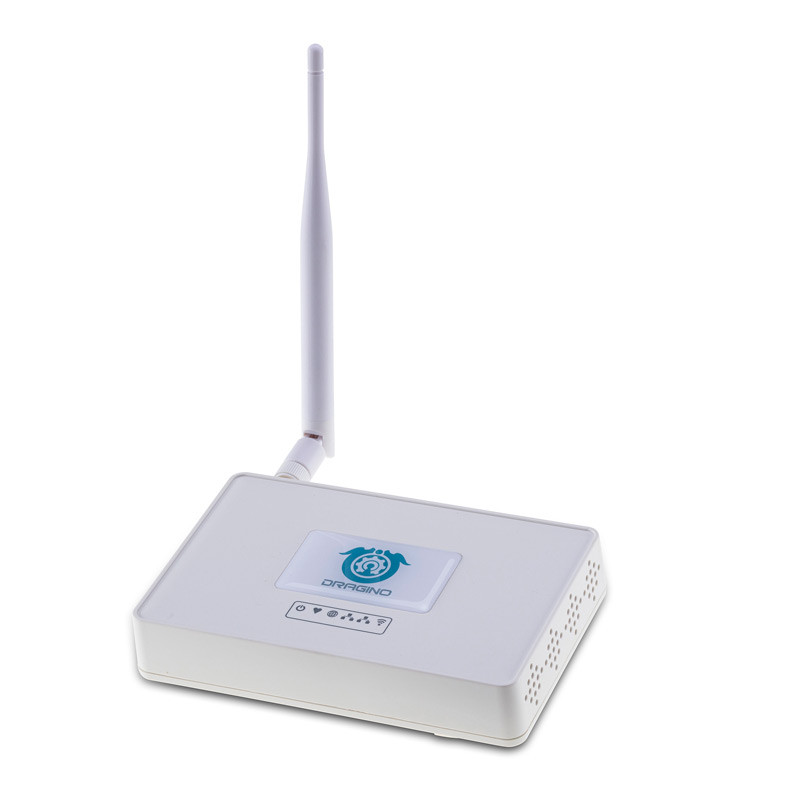

Dragino LG308 Gateway LoRaWAN de interior (sin 4G)

The LG308 is an open source LoRaWAN Indoor Pico Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi, Ethernet network. The LoRa wireless allows users to send data and reach extremely long ranges at low data-rates.

The LG308 uses Semtech packet forwarder and LoRaWAN Station connection, it is fully compatible with LoRaWAN protocol. It includes a SX1301 LoRa concentrator + 2 x SX1257, which provide 10 programmable parallele demolulation paths.

LG308 has pre-configured standard LoRaWAN frequency bands to use for different countries. User can also customize the frequency bands to use in their own LoRaWAN network.

LG308 has optional built-in LoRaWAN server. System integrator can use it to integrate with their existing IoT Service without set up own LoRaWAN server or use 3td party LoRaWAN service.

Features:

    Open Source OpenWrt system
    Managed by Web GUI, SSH via LAN or WiFi
    LoRaWAN Gateway
    Emulates 49x Lora demodulators
    10 programmable parallel demodulation paths

Applications:

    Smart Buildings & Home Automation
    Logistics and Supply Chain Management
    Smart Metering
    Smart Agriculture
    Smart Cities
    Smart Factory

LoRa Spec:

    1 x SX1301 + 2 x 1257 LoRa Tranceiver

General Specification:

    10M/100M RJ45 Ports x 2
    1 x 2.4G WiFi (802.11 bgn)
    1 x USB host port
    1 x Mini-PCIe Interface
    Power Input: 12V, 1A

Dimensions and Weight:

Device:
    Size:12.0 x 8.5 x 3.0 cm/pcs
    Weight: 150g

Package:
    Size: 21.5 x 10.0 x 5.0 mm/pcs
    Weight: 360g
