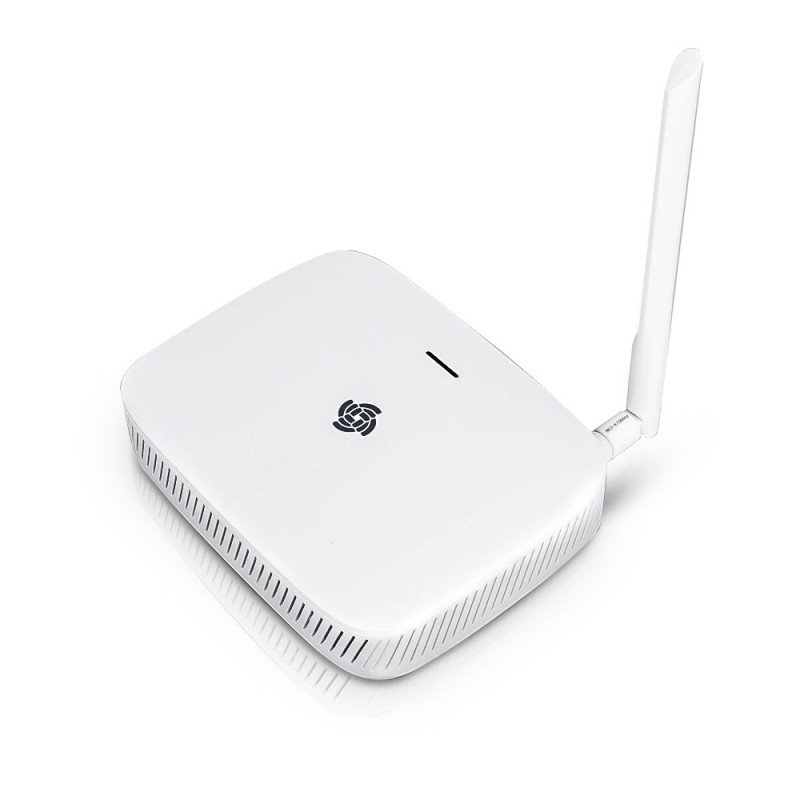

WisGate Edge Lite 2 RAK7268 Gateway - EU868 - non-LTE
The RAK7268 WisGate Edge Lite 2 is a full 8-channel indoor gateway, based on the LoRaWAN protocol, with built-in Ethernet connectivity for a straightforward setup.
Todas as nossas páginas são protegidas com conexão HTTPS/TLS 1.3
Envio no mesmo dia de segunda a sexta para qualquer pedido feito antes das 10:00 am
The RAK7268 WisGate Edge Lite 2 is a full 8-channel indoor gateway, based on the LoRaWAN protocol, with built-in Ethernet connectivity for a straightforward setup. Additionally, there is an onboard Wi-Fi setup (supporting 2.4 GHz Wi-Fi) that allows it to be easily configured via the default Wi-Fi AP mode.
As with the other RAKwireless Industrial Gateways, it also supports MQTT Bridge mode, with the option for TLS authentication.
Power-over-Ethernet (PoE) is supported to serve cases where wall or ceiling mounting is required without the need to install additional power lines.
The open-source software for the management and configuration of this gateway device is based on OpenWRT. It has a built-in LoRa packet forwarder and a graphical user interface, allowing for a quick set-up without giving up the freedom of a fully customized solution.
RAK7268 also supports the MQTT Bridge function, can use the MQTT integrated to third-party platforms.
RAK7268 is especially suitable for small and medium-sized deployment scenarios in industry applications, saving the additional cost for server and R&D investment, and has the advantages of high execution efficiency.
Full LoRaWAN Stack support (V 1.0.3) with Semtech SX1302
Supports 2.4 GHz Wi-Fi AP for configuration
100M Base-T Ethernet with PoE
Multi back-haul with Ethernet, Wi-Fi, Cellular
OpenWRT software supports Web UI for easy configuration and monitoring
Can integrate with both private (ChirpStack) and public (TTN) network servers
TF card for log backup and LoRa frame buffering (in case of backhaul failover)
Built-in Network Server for easy deployment of applications and integration of gateways
LTE Cat 4 network (optional)
1pc WisGate Edge Lite 2/2+
1pc LoRa antenna
1set Mounting screws
1pc Power Adapter
