Dragino LHT65N-DS LoRaWAN Door Sensor EU868
search
  • Dragino LHT65N-DS LoRaWAN Door Sensor EU868

Dragino LHT65N-DS LoRaWAN Door Sensor EU868

€34.95
Tax excluded

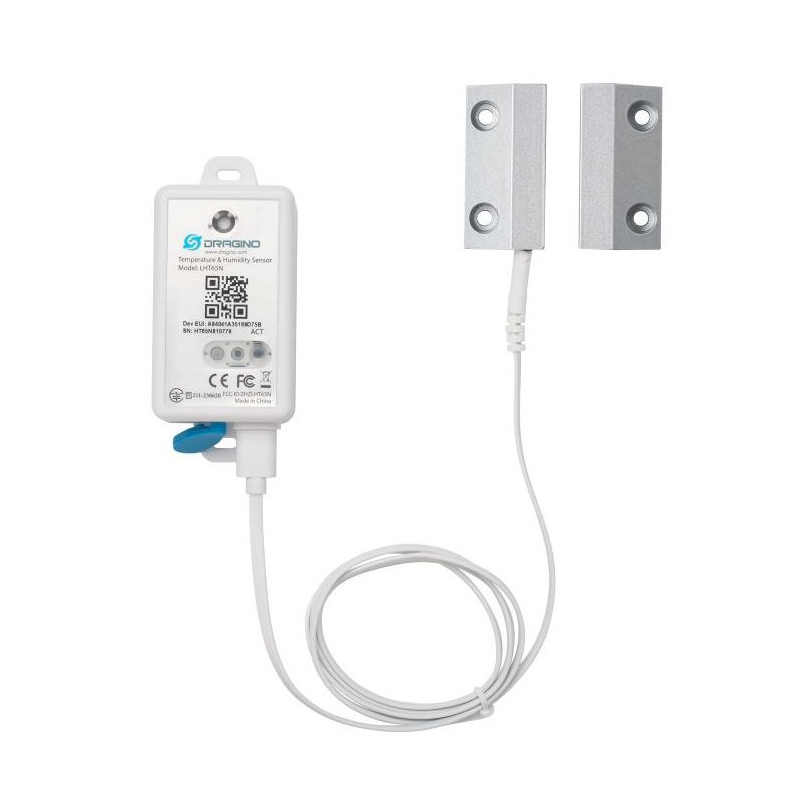

The Dragino LHT65N-DS Door Sensor is a Long Range LoRaWAN Sensor. It includes a built-in Temperature & Humidity sensor and a metal Door Sensor.

Quantity

  Security policy:

We protect your data with strict security measures to prevent unauthorized access.

  Delivery policy:

Shipments in 2-7 business days depending on the courier selected during the purchase of the product.

  Return policy

You can return your purchase within 14 days if the product and packaging are in perfect condition.

The Dragino LHT65N-DS Door Sensor is a Long Range LoRaWAN Sensor. It includes a built-in Temperature & Humidity sensor and a metal Door Sensor.

The LHT65N-DS allows users to send data and reach extremely long ranges. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption. It targets professional wireless sensor network applications such as irrigation systems, smart metering, smart cities, building automation, and so on.

LHT65N-DS has a built-in 2400mAh non-chargeable battery which can be used for up to 10 years*.

LHT65N-DS is full compatible with LoRaWAN v1.0.3 Class A protocol, it can work with a standard LoRaWAN gateway.

*The actual battery life depends on how often to send data.

Features:

    LoRaWAN Class A protocol
    Frequency Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915
    Built-in Temperature & Humidity sensor
    1 meter metal Door Sensor
    Tri-color LED to indicate status
    AT Commands to change parameters
    Remote configure parameters via LoRaWAN Downlink
    Firmware upgradable via program port
    Built-in 2400mAh battery used for up to 10 year*

Applications:

    Wireless Alarm and Security Systems
    Home and Building Automation
    Industrial Monitoring and Control
    Long range Irrigation Systems,etc.

Specifications:

Built-in Temperature Sensor:

    Resolution: 0.01 °C
    Accuracy Tolerance : Typ ±0.3 °C
    Long Term Drift: < 0.02 °C/yr
    Operating Range: -40 ~ 80 °C

Built-in Humidity Sensor:

    Resolution: 0.04 %RH
    Accuracy Tolerance : Typ ±3 %RH
    Long Term Drift: < 0.25 RH/yr
    Operating Range: 0 ~ 96 %RH

External Door Sensor:

    Detect Distance: ~3cm
    Meterial: Aluminum Alloy
    Cable Lenght: 1 meter

LHT65N-DS-EU868
