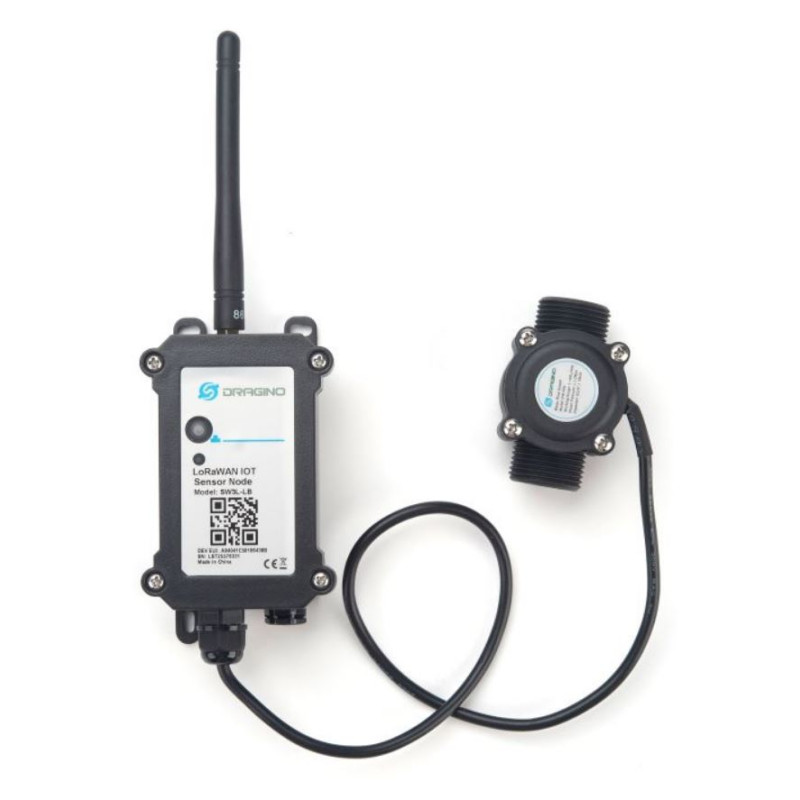

Dragino SW3L-LB-004 -- LoRaWAN Outdoor Flow Sensor EU868

The Dragino SW3L-LB is a LoRaWAN Flow Sensor. It detects water flow volume and uplink to IoT server via LoRaWAN network. User can use this to monitor the water usage for buildings.

The SW3L-LB will send water flow volume every 20 minutes. It can also detect the water flow status and send Alarm, to avoid the waste for water usage such as broken toilet case.

SW3L-LB is designed for both indoor and outdoor use. It has a weatherproof enclosure and industrial level battery to work in low to high temperatures.

The LoRa wireless technology used in SW3L-LB allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.

SW3L-LB supports BLE configure and wireless OTA update which make user easy to use.

SW3L-LB is powered by 8500mAh Li-SOCI2 battery, it is designed for long term use up to 5 years.

Each SW3L-LB is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect after power on.

Features:

    LoRaWAN v1.0.3 Class A protocol
    Bands:CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865/RU864
    Ultra-low power consumption
    Upload water flow volume
    Monitor water waste
    AT Commands to change parameters
    Supports Datalog feature
    Support Bluetooth v5.1 and LoRaWAN remote configure
    Support wireless OTA update firmware
    Uplink on periodically and open/close event
    Downlink to change configure
    8500mAh Li/SOCl2 Battery (SW3L-LB)

Applications:

    Flow Sensor application
    Water Control
    Toilet Flow Sensor
    Monitor Waste water
