RAK9155 RAK Battery Plus & Solar Panel Kit

865,00 €
Sem IVA

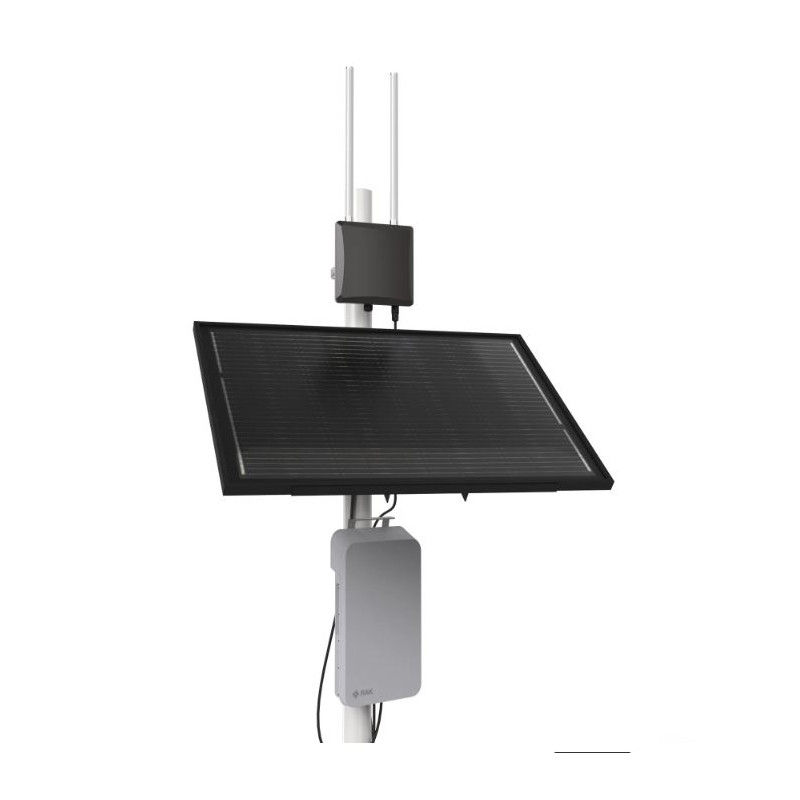

RAK9155 The Solar Battery Kit for LoRaWAN Gateways

  Política de segurança:

Protegemos os seus dados com medidas de segurança rigorosas para evitar acessos não autorizados.

  Política de entrega:

Envios em 2 a 7 dias úteis dependendo do transportador selecionado durante a compra do produto.

  Política de devolução

Você pode devolver sua compra no prazo de 14 dias se o produto e a embalagem estiverem em perfeitas

This solution includes everything to power the WisGate Edge Pro or WisGate Edge Prime (with Battery Plus support) gateway with Solar energy anywhere where reliable LoRaWAN coverage is needed.

Battery Plus, combined with the Solar Panel Kit, is the latest RAK battery system incorporating a solar panel, mounting kit, solar charging system, and status monitoring. It is specially developed for the WisGate Edge Pro and WisGate Edge Prime(with Battery Plus support) gateways. It will allow reliable outdoor deployment of the gateway in remote off-grid scenarios where the power is unreliable or inaccessible. Not only will your gateway be powered 24/7, but you will also get all the battery information and status in the WisGateOS Web UI locally and in the WisDM platform remotely.

With this 50ah battery, your gateway can run for more than 5 days without sun. The 80W panel is specially selected to meet the needs of the Battery Plus system and with the included mounting kit the solution can be deployed quickly and easily.

Enhance your commercial and large-scale deployments with the RAK Battery Plus, backed by a Product/Public Liability Certificate of Insurance for unparalleled reliability and risk mitigation in even the most remote locations.


Battery Plus Features:

    Long Life Span - The Lithium Iron Phosphate battery can be expected to remain serviceable for more than 10 years, considering that it is charged and discharged once a day at room temperature (25°C).
    Integrated Heating Function - The battery integrates a solar charger and heater, it can be connected to PV panels directly and charged under 0°C.
    Lightweight Design - The weight of RAK9155 is no more than 8kg making installation by a single person easier.
    High Waterproof Grade - With an IP65 rating of the enclosure, RAK9155 is suitable for both indoor and outdoor environments.

Solar Panel Kit Features:

    Peak power: 80 W
    Open circuit voltage (Voc): 24.4V
    power voltage (Vmp): 20.5V
    power current (Imp): 3.90A
    Dimensions: 795x580x30mm
    Operating temperature: -40°C to +85°C
    The pole diameter supported by the mounting kit is 50-100 mm

Bundle Inclusion:

    Battery Plus power solution with 50Ah battery
    Solar Panel with mounting kit (if selected)
    All cables for the connection between the Solar Panel, Battery Plus, and gateway are included

Package Inclusion:

    1pc Solar Battery
    3pcs Power Cable
    1pc Mounting Kit
    3pcs Cable trap-Screw Mount
    1pc Carry equipment
