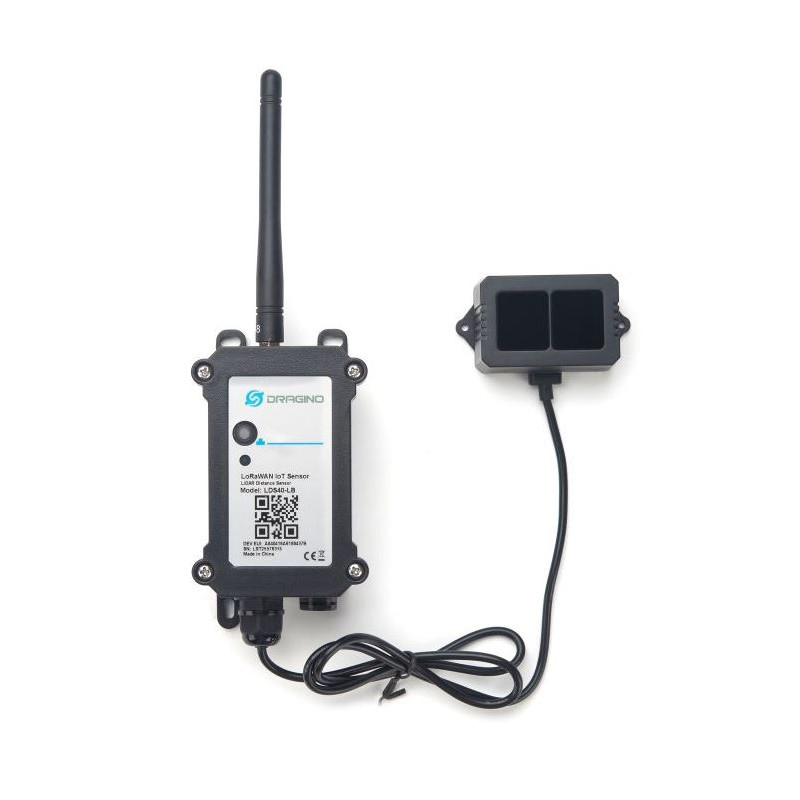

Dragino LDS40-LB -- LoRaWAN LiDAR ToF Distance Sensor EU868

The Dragino LDS40-LB is a LoRaWAN LiDAR ToF (Time of Flight) Distance Sensor for Internet of Things solution. It is capable to measure the distance to an object as close as 0m. to 40m. The LiDAR probe uses laser induction technology for distance measurement.

The LDS40-LB can be applied to scenarios such as horizontal distance measurement, parking management system, object proximity and presence detection, intelligent trash can management system, robot obstacle avoidance, automatic control, sewer, etc.

It detects the distance between the measured object and the sensor, and uploads the value via wireless to LoRaWAN IoT Server.

The LoRa wireless technology used in LDS40-LB allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.

LDS40-LB supports BLE configure and wireless OTA update which make user easy to use.

LDS40-LB is powered by 8500mAh Li-SOCI2 battery, it is designed for long term use up to 5 years.

Each LDS40-LB is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect after power on.

Features:

    LoRaWAN 1.0.3 Class A
    Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
    Ultra-low power consumption
    Laser technology for distance detection
    Measure Distance: 0.1m~40m @ 90% Reflectivity
    FOV : 3°
    Monitor Battery Level
    Support Bluetooth v5.1 and LoRaWAN remote configure
    Support wireless OTA update firmware
    AT Commands to change parameters
    Downlink to change configure
    8500mAh Li/SOCl2 Battery (LDS40-LB)

Applications:

    Horizontal distance measurement
    Parking management systemt
    Object proximity and presence detectiont
    Intelligent trash can management systemt
    Robot obstacle avoidancet
    Automatic controlt
    Sewer
