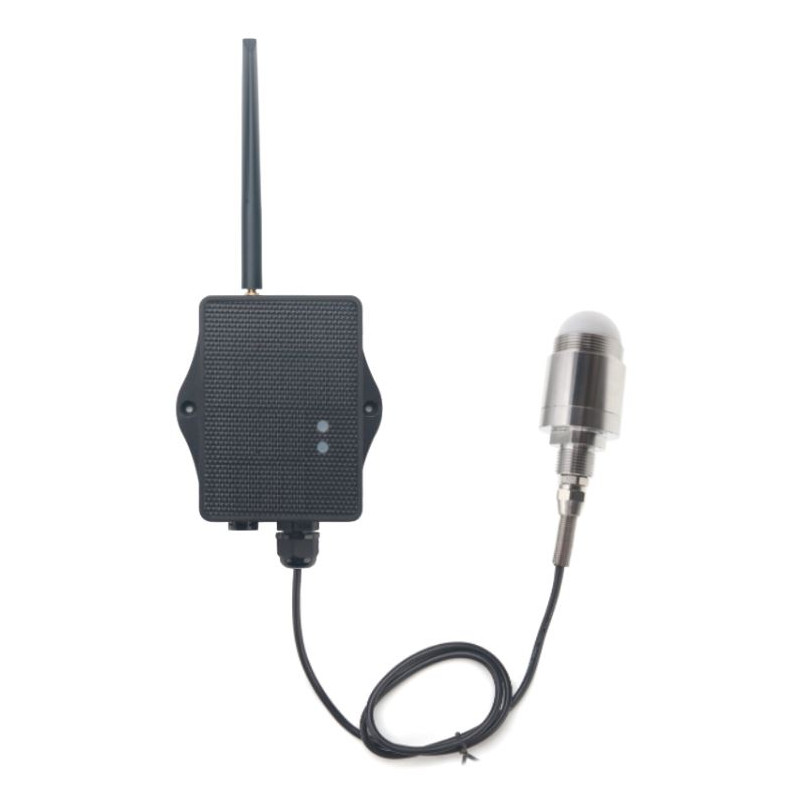

MR-03-NS -- Dragino NB-IoT Microwave Radar Distance Sensor

The Dragino MR-03-NS is a NB-IoT Microwave Radar distance Sensor for Internet of Things solution. It uses 80Ghz Microwave Radar to detect the distance between sensor and different objects. Different from ultrosonic or Lidar measurement. Microwave Radar is more reliable for condensation / dusty environment. It can sense correct distance even there is water or think dust on top of the sensor.

The MR-03-NS can be applied to scenarios such as horizontal distance measurement, parking management system, object proximity and presence detection, intelligent trash can management system, robot obstacle avoidance, automatic control, sewer, etc.

MR-03-NS supports BLE configure and wireless OTA update which make user easy to use.

MR-03-NS supports different uplink methods include TCP, MQTT, UDP, MQTTs or CoAP for different application requirement. and Support Uplinks to various IoT Servers.

MR-03-NS is powered by solar panel with Li-ion battery, it is designed for long-term use up to several years.

Features:

    NB-IoT Bands: B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B28/B66/B70/B85 @H-FDD
    Ultra-low power consumption
    80Ghz Microwave Radar for distance detection
    Measure Range: 3m: 200 ~ 3000mm
    Accuracy: ±20mm
    Resolution: 1mm
    Measurement Angle: 7.6 degrees horizontal and 7.6 degrees vertical
    Multiply Sampling and one uplink
    Support Bluetooth v5.1 remote configure and update firmware
    Uplink on periodically
    Downlink to change configure
    Solar panel with Li-ion battery (MR-XX-NS)


Applications:

    Horizontal distance measurement
    Liquid level measurement
    Parking management system
    Object proximity and presence detection
    Intelligent trash can management system
    Robot obstacle avoidance
    Automatic control
    Sewer
    Bottom water level monitoring

Package Includes:

    1 x MR-03-NS NB-IoT Distance Detection Sensor
